Характеристики

Condition: New

Warranty: 2 years

Applicable Industries: Manufacturing Plant, Machinery Repair Shops, Retail, Printing Shops, Advertising Company, Equipment company

Showroom Location: None

Video outgoing-inspection: Provided

Machinery Test Report: Provided

Marketing Type: New Product 2020

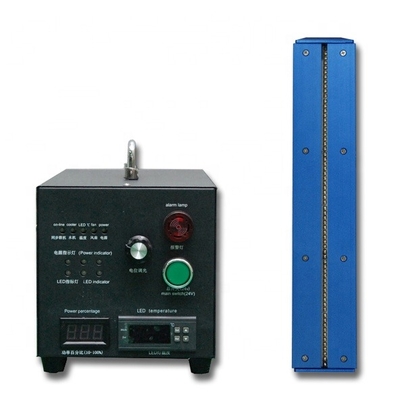

Type: UV LED curing system

Use: All

Printing Type: Inkjet Printer

Application: For inkjet printer

Key material: LG/Seoul LED, T.W. Meanwell power module

Product life: >3years for LED, >5years for controller

Electric power(W): 180W

UV Led lamp size(mm): L=340, W=64, H=93

Emitting size(mm): Le=330, We=12

Radiation intensity(FYR): 0-10W/cm2

Wavelength (nm): 365/385/395/435, single or mix

Cooling method: air-cooled

After Warranty Service: Video technical support, Online support, Spare parts

Local ServiceÂ Location: None

Основная информация

Оплата и доставка Условия

Packaging Details: Inner: packed in PET foam. Outer: Export carton box or plywood box.

Supply Ability: 1000 Set/Sets per Month

Характер продукции

APPLICATIONS

This series of products is suitable for all kinds of printing machiners include inkjet printer, digital printer, flatbed printers, roll to roll printers, wide format printers, rotary presses, such as Epson, Ricoh, Seiko, Kyocera, Konika, Xaar, Starlight, Ser, etc. it can replace the ordinary lamp.

PRODUCT DESCRIPTIONS

Product characters

Product specification

	MODEL#: MYH-I55S12-30-W Power controller(mm): P3, L173W400H180 Size of LED lamp head (mm): L65 * W64 * H93 Size of emitting window / area(mm): Le55 We12/8 Electric power of set (W): 30W Radiation intensity (FYR): 0-10W/cm² Wavelength(nm): 365 / 385 / 395 / 405nm ± 2.5nm, single or mix Curing time or speed: 0.1-2s (depending on UV chemical) Air cooling ----------------------------------------------------------------- MODEL#: MYH-I110S12-60-W Power controller(mm): P3, L173W400H180 Size of LED lamp head (mm): L120 W64 * H93 Size of emitting window / area(mm): Le110 We12/8 Electric power of set (W): 60W Radiation intensity (FYR): 0-10W/cm² Wavelength(nm): 365 / 385 / 395 / 405nm ± 2.5nm, single or mix Curing time or speed: 0.1-2s (depending on UV chemical) *Air cooling
	MODEL#: MYH-I165S12-90-W Power controller(mm): P3, L173W400H180 Size of LED lamp head (mm): L175 * W64 * H93 Size of emitting window / area(mm): Le165 We12/8 Electric power of set (W): 90W Radiation intensity (FYR): 0-10W/cm² Wavelength(nm): 365 / 385 / 395 / 405nm ± 2.5nm, single or mix Curing time or speed: 0.1-2s (depending on UV chemical) Air cooling ----------------------------------------------------------------- MODEL#: MYH-I220S12-120-W Power controller(mm): P3, L173W400H180 Size of LED lamp head (mm): L230 W64 * H93 Size of emitting window / area(mm): Le220 We12/8 Electric power of set (W): 120W Radiation intensity (FYR): 0-10W/cm² Wavelength(nm): 365 / 385 / 395 / 405nm ± 2.5nm, single or mix Curing time or speed: 0.1-2s (depending on UV chemical) *Air cooling
	MODEL#: MYH-I275S12-150-W Power controller(mm): P3, L173W400H180 Size of LED lamp head (mm): L285 * W64 * H93 Size of emitting window / area(mm): Le275 We12/8 Electric power of set (W): 150W Radiation intensity (FYR): 0-10W/cm² Wavelength(nm): 365 / 385 / 395 / 405nm ± 2.5nm, single or mix Curing time or speed: 0.1-2s (depending on UV chemical) Air cooling ----------------------------------------------------------------- MODEL#: MYH-I330S12-180-W* Power controller(mm): P3, L173W400H180 Size of LED lamp head (mm): L340 * W64 * H93 Size of emitting window / area(mm): Le330 We12/8 Electric power of set (W): 180W Radiation intensity (FYR): 0-10W/cm² Wavelength(nm): 365 / 385 / 395 / 405nm ± 2.5nm, single or mix Curing time or speed: 0.1-2s (depending on UV chemical) *Air cooling
	MODEL#: MYH-I380S12-210-W Power controller(mm): P3, L173W400H180 Size of LED lamp head (mm): L390 * W64 * H93 Size of emitting window / area(mm): Le380 We12/8 Electric power of set (W): 210W Radiation intensity (FYR): 0-10W/cm² Wavelength(nm): 365 / 385 / 395 / 405nm ± 2.5nm, single or mix Curing time or speed: 0.1-2s (depending on UV chemical) Air cooling ----------------------------------------------------------------- MODEL#: MYH-I440S12-240-W Power controller(mm): P3, L173W400H180 Size of LED lamp head (mm): L450 W64 * H93 Size of emitting window / area(mm): Le440 We12/8 Electric power of set (W): 240W Radiation intensity (FYR): 0-10W/cm² Wavelength(nm): 365 / 385 / 395 / 405nm ± 2.5nm, single or mix Curing time or speed: 0.1-2s (depending on UV chemical) *Air cooling
Customized available

Product photoes

Product packaging & shipping

1.Packed with PE foam, export carton box or plywood box.

2. By sea, by are or by express.

MORE CHOISES

MOYOHO has a lot of items for your to choose from, as a one stop solution for the UV LED industry Moyoho provides curing and drying for most of UV chemicals that include UV ink, UV adhesive, UV coating, UV varnish and so on, MOYOHO belevies you can choose some items you are really interested in.

COMPANY INFORMATION

Shenzhen Moyoho Optoelectronic Technology Co., Ltd was established in 2010 in Shenzhen China, and as a leader in UV LED production Moyoho Optoelectronic specializes in manufacturing UV LED curing lamps, UV LED curing system, UV LED curing machines, UV LED module and packaging the UV LED chipsets. As a one stop solution for the UV LED industry we provide curing and drying for all UV-LED chemicals that include UV ink, UV adhesive, UV coating, UV varnish, ect. Moyoho Optoelectronic has broad experience in the UV LED field and is backed by our strong in-house R&D, production and QC capabilities to ensure we produce top quality products with competitive pricing. Our internal sales and after-sales-service teams ensure fast delivery and comprehensive service to our customers. Moyoho Optoelectronic works with many unique customers including both OEM and ODM. We are able to support projects requiring non-standard or even custom products, our experienced staff is able to meet your needs and requirements.

Moyoho Optoelectronic is dedicated to providing a full range of environmentally friendly and energy-saving UV LED solutions to the world, we base our service on the principle of honesty and integrity with the goal of creating mutually beneficial relationships. To learn more you are welcome to visit our manufacturing facility.

OUR PATENTS AND CERTIFICATIONS

CE, RosH, CCC qualified.

OUR CLIENTS AND PANTNERS

OUR SERVISES

*The warranty period of our UV LED products is 2 year

*Offer spare part or module for replacement

*24h online supporting

*Video supporting

FAR

Q1: Why do I replace a UV LED Lamp?

A1: UV LED's working time is more than 25,000 hours, 10 times longer than the traditional lamp, Besides, UV LED curing is more effective, save 80% of energy costs and environment friendly.

Q2: Do all of current UV chemicals work well with UV LED?

A2: No, The chemical must be specifically to take advantage of the narrow Wavelength, please ask for your supplier for the best wavelength, and then we can customized the most suitable and high-efficiency wavelength for you.

Q3: What about the warranty period?

A3: All of Moyoho products come with a full two-year warranty, Moyoho can offer the parts for free if any parts demanged in warranty.

Q4: What about the after-sales service?

A4: Moyoho provides spare parts for replacement, and 24 hours online and video technical support.

Q5: How to get the best solution with right price?

A5: There are some important information we need to know before offering:

1,What do you use it for or in what machine is it to be installed? (such as, it will be used for ### printer model.###)

2.Which wavelength do you require or what UV chemical do you want to cure? (It depends on your UV chemical, such as 365/375/385/395/405/415nm and so on.)

3.What size of emitting window do you need?(It depends on your product’s size or curing method)

4.How much peak irradiance do you need?(It depends on your UV chemical and your max producing speed.)

5.If any spec of common set can't meet your requirement, don't worry! CUSTOMIZED solutions are available.

	MODEL#: MYH-I55S12-30-W Power controller(mm): P3, L173W400H180 Size of LED lamp head (mm): L65 * W64 * H93 Size of emitting window / area(mm): Le55 We12/8 Electric power of set (W): 30W Radiation intensity (FYR): 0-10W/cm² Wavelength(nm): 365 / 385 / 395 / 405nm ± 2.5nm, single or mix Curing time or speed: 0.1-2s (depending on UV chemical) Air cooling ----------------------------------------------------------------- MODEL#: MYH-I110S12-60-W Power controller(mm): P3, L173W400H180 Size of LED lamp head (mm): L120 W64 * H93 Size of emitting window / area(mm): Le110 We12/8 Electric power of set (W): 60W Radiation intensity (FYR): 0-10W/cm² Wavelength(nm): 365 / 385 / 395 / 405nm ± 2.5nm, single or mix Curing time or speed: 0.1-2s (depending on UV chemical) *Air cooling
	MODEL#: MYH-I165S12-90-W Power controller(mm): P3, L173W400H180 Size of LED lamp head (mm): L175 * W64 * H93 Size of emitting window / area(mm): Le165 We12/8 Electric power of set (W): 90W Radiation intensity (FYR): 0-10W/cm² Wavelength(nm): 365 / 385 / 395 / 405nm ± 2.5nm, single or mix Curing time or speed: 0.1-2s (depending on UV chemical) Air cooling ----------------------------------------------------------------- MODEL#: MYH-I220S12-120-W Power controller(mm): P3, L173W400H180 Size of LED lamp head (mm): L230 W64 * H93 Size of emitting window / area(mm): Le220 We12/8 Electric power of set (W): 120W Radiation intensity (FYR): 0-10W/cm² Wavelength(nm): 365 / 385 / 395 / 405nm ± 2.5nm, single or mix Curing time or speed: 0.1-2s (depending on UV chemical) *Air cooling
	MODEL#: MYH-I275S12-150-W Power controller(mm): P3, L173W400H180 Size of LED lamp head (mm): L285 * W64 * H93 Size of emitting window / area(mm): Le275 We12/8 Electric power of set (W): 150W Radiation intensity (FYR): 0-10W/cm² Wavelength(nm): 365 / 385 / 395 / 405nm ± 2.5nm, single or mix Curing time or speed: 0.1-2s (depending on UV chemical) Air cooling ----------------------------------------------------------------- MODEL#: MYH-I330S12-180-W* Power controller(mm): P3, L173W400H180 Size of LED lamp head (mm): L340 * W64 * H93 Size of emitting window / area(mm): Le330 We12/8 Electric power of set (W): 180W Radiation intensity (FYR): 0-10W/cm² Wavelength(nm): 365 / 385 / 395 / 405nm ± 2.5nm, single or mix Curing time or speed: 0.1-2s (depending on UV chemical) *Air cooling
	MODEL#: MYH-I380S12-210-W Power controller(mm): P3, L173W400H180 Size of LED lamp head (mm): L390 * W64 * H93 Size of emitting window / area(mm): Le380 We12/8 Electric power of set (W): 210W Radiation intensity (FYR): 0-10W/cm² Wavelength(nm): 365 / 385 / 395 / 405nm ± 2.5nm, single or mix Curing time or speed: 0.1-2s (depending on UV chemical) Air cooling ----------------------------------------------------------------- MODEL#: MYH-I440S12-240-W Power controller(mm): P3, L173W400H180 Size of LED lamp head (mm): L450 W64 * H93 Size of emitting window / area(mm): Le440 We12/8 Electric power of set (W): 240W Radiation intensity (FYR): 0-10W/cm² Wavelength(nm): 365 / 385 / 395 / 405nm ± 2.5nm, single or mix Curing time or speed: 0.1-2s (depending on UV chemical) *Air cooling
Customized available
